YMEL 702-AB Yale YMEL series Mortise Lock Comboset with Rose and Escutcheons, Cylinder with Knob inside and keys Outside, Antique Brass Finish

Please request a quote to view pricing.

SKU: YMEL-702-AB-RE-60MM-8545-TT-AB Categories: , Tags: , , , , , , , , , , ,

Share:

Product Descriptions

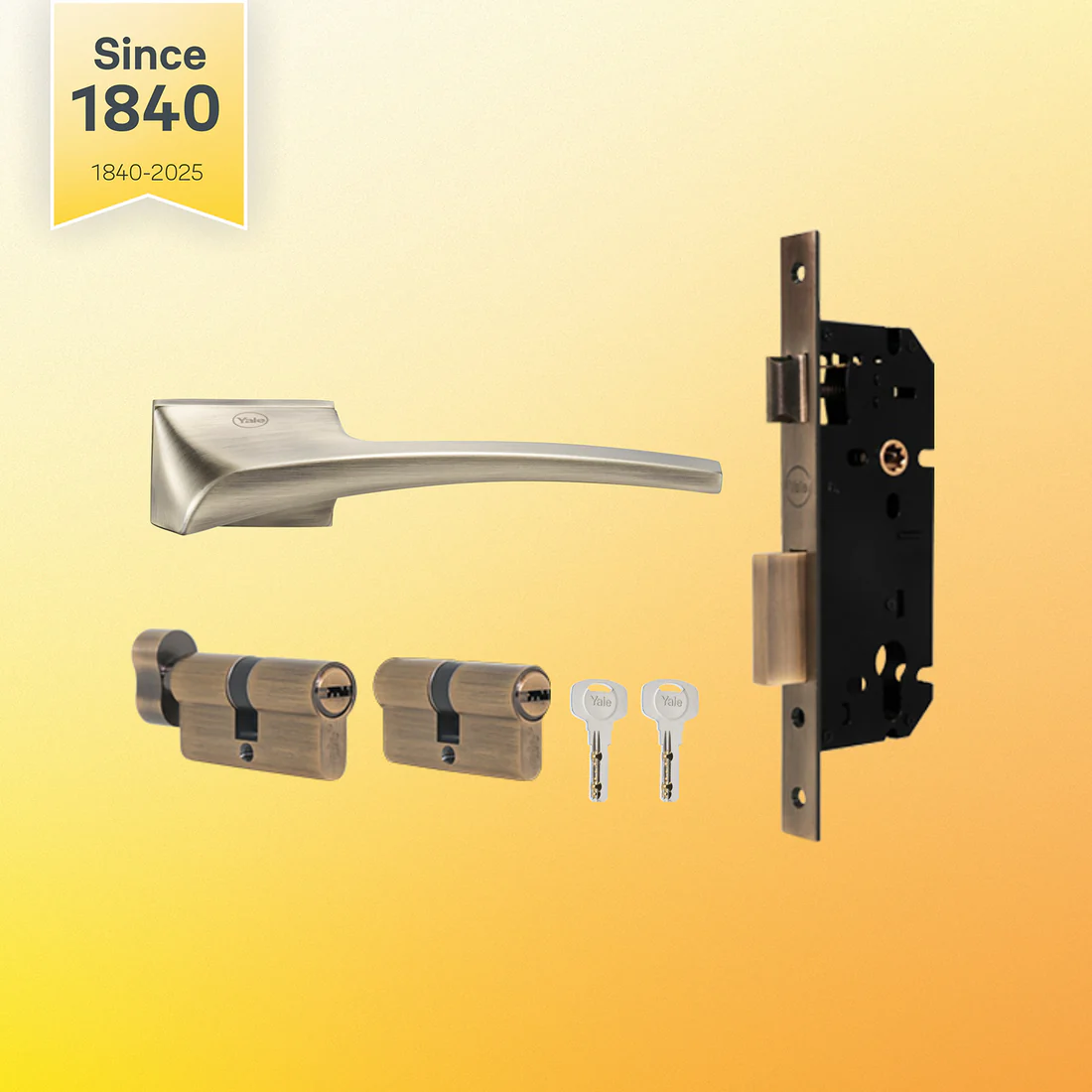

Mortise Combosets of Lever Handle, with euro profile cylinder 60mm with both side keys. Regular keys option and lockbody.

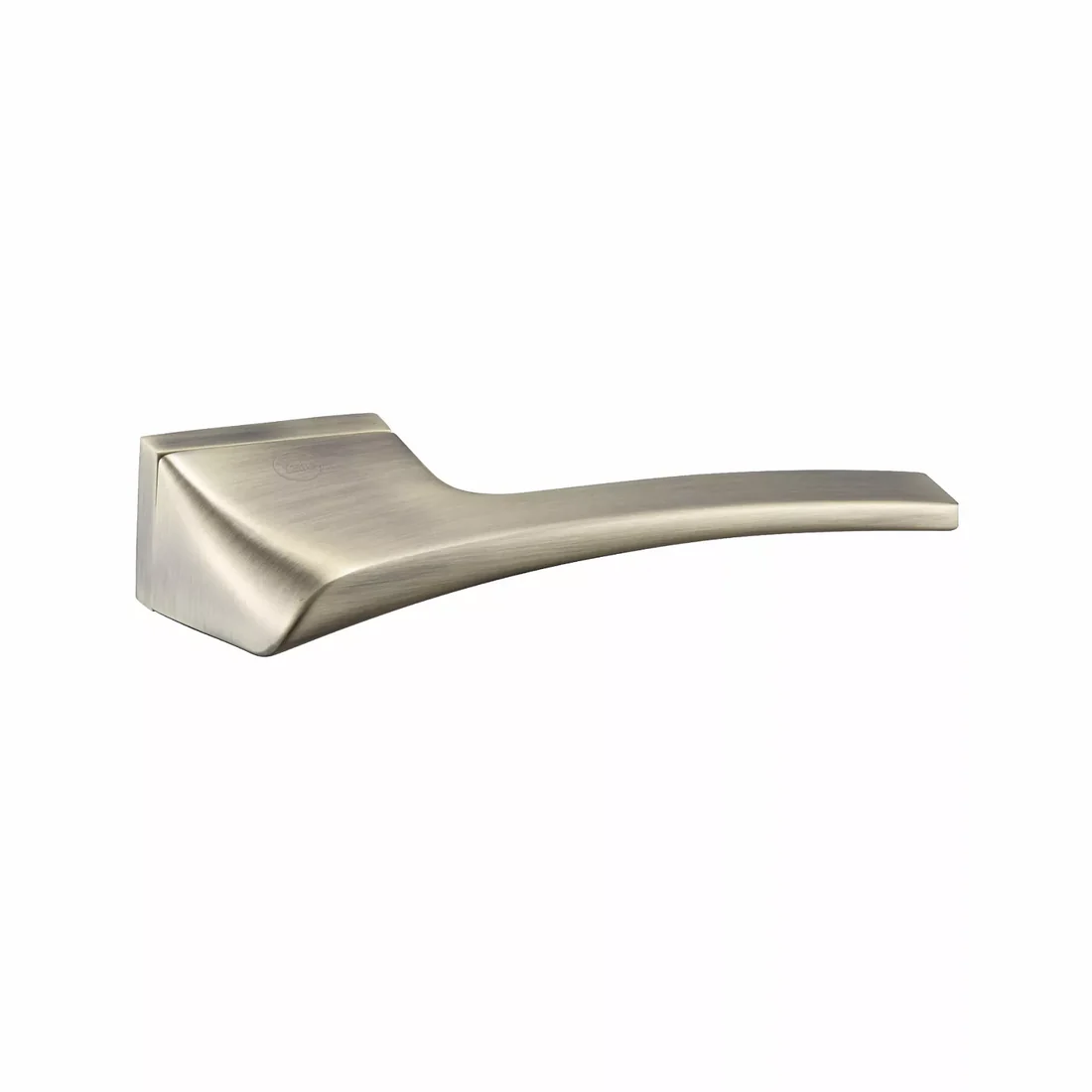

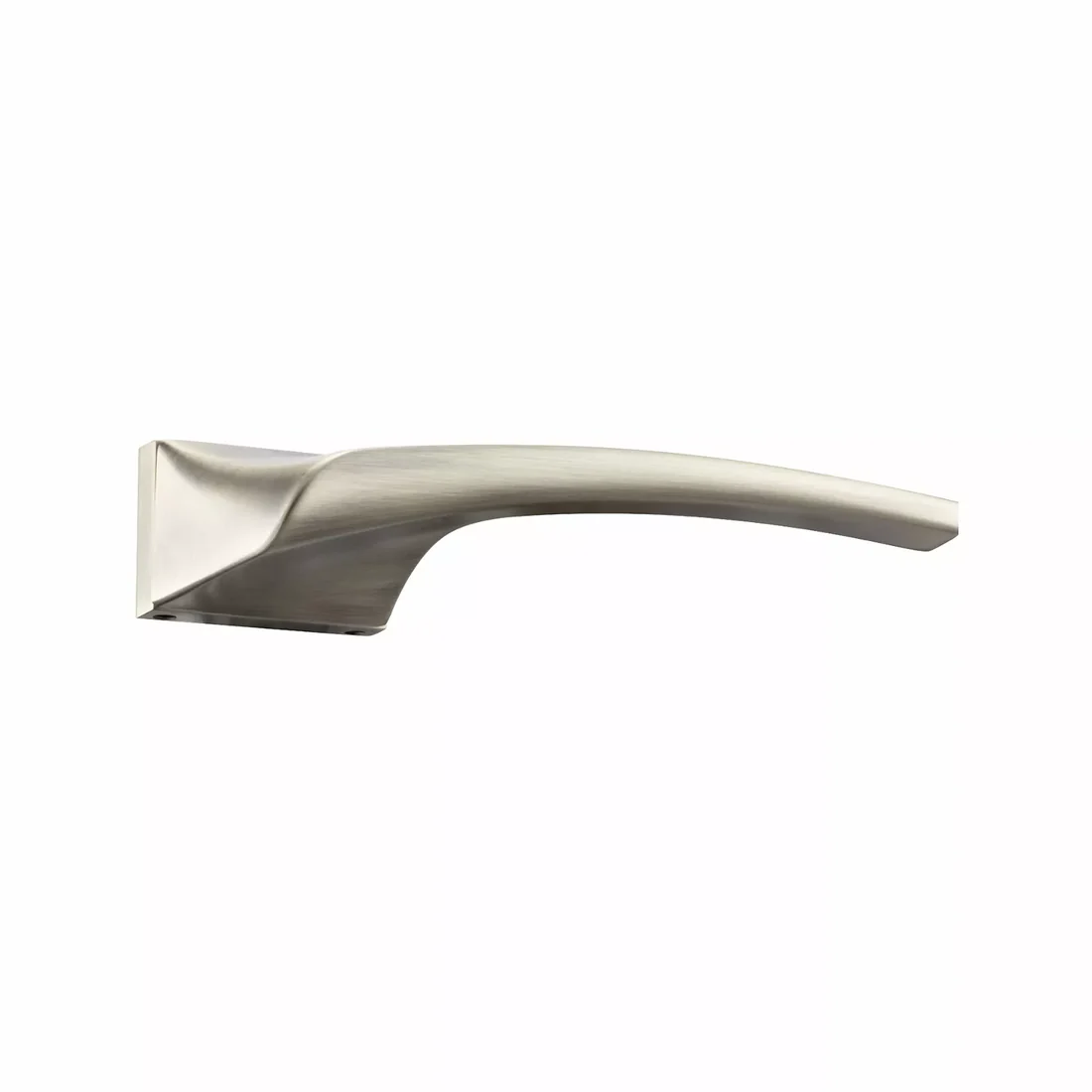

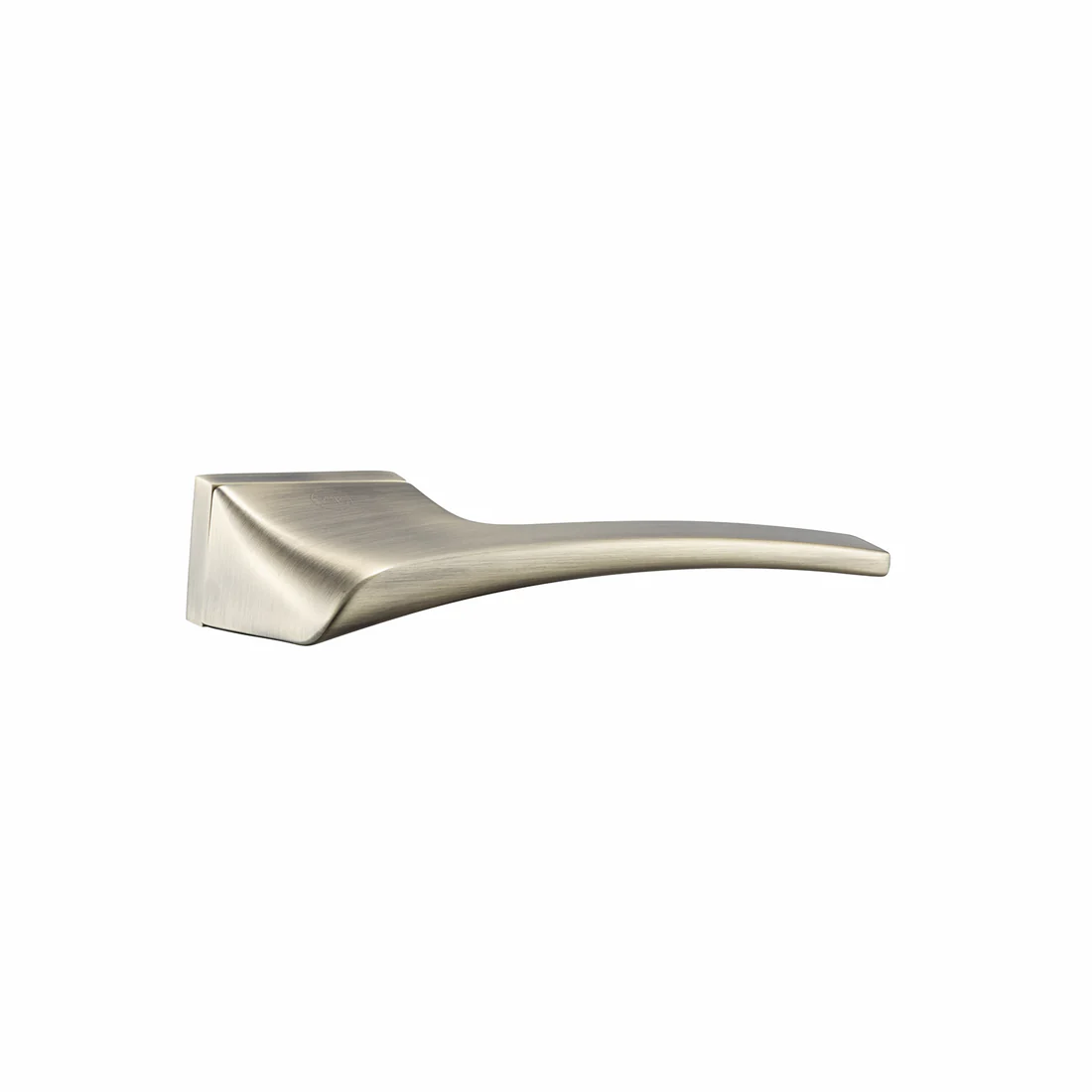

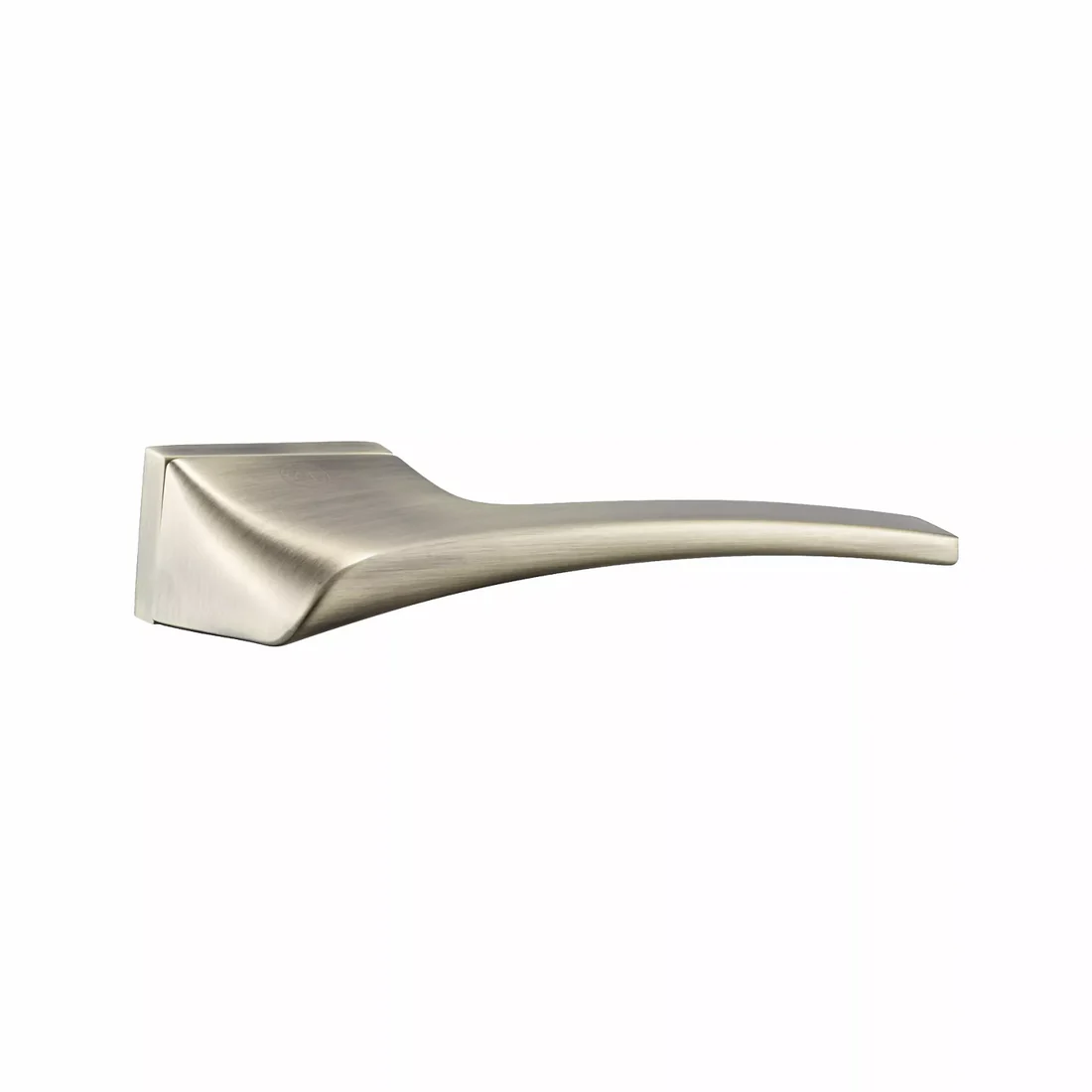

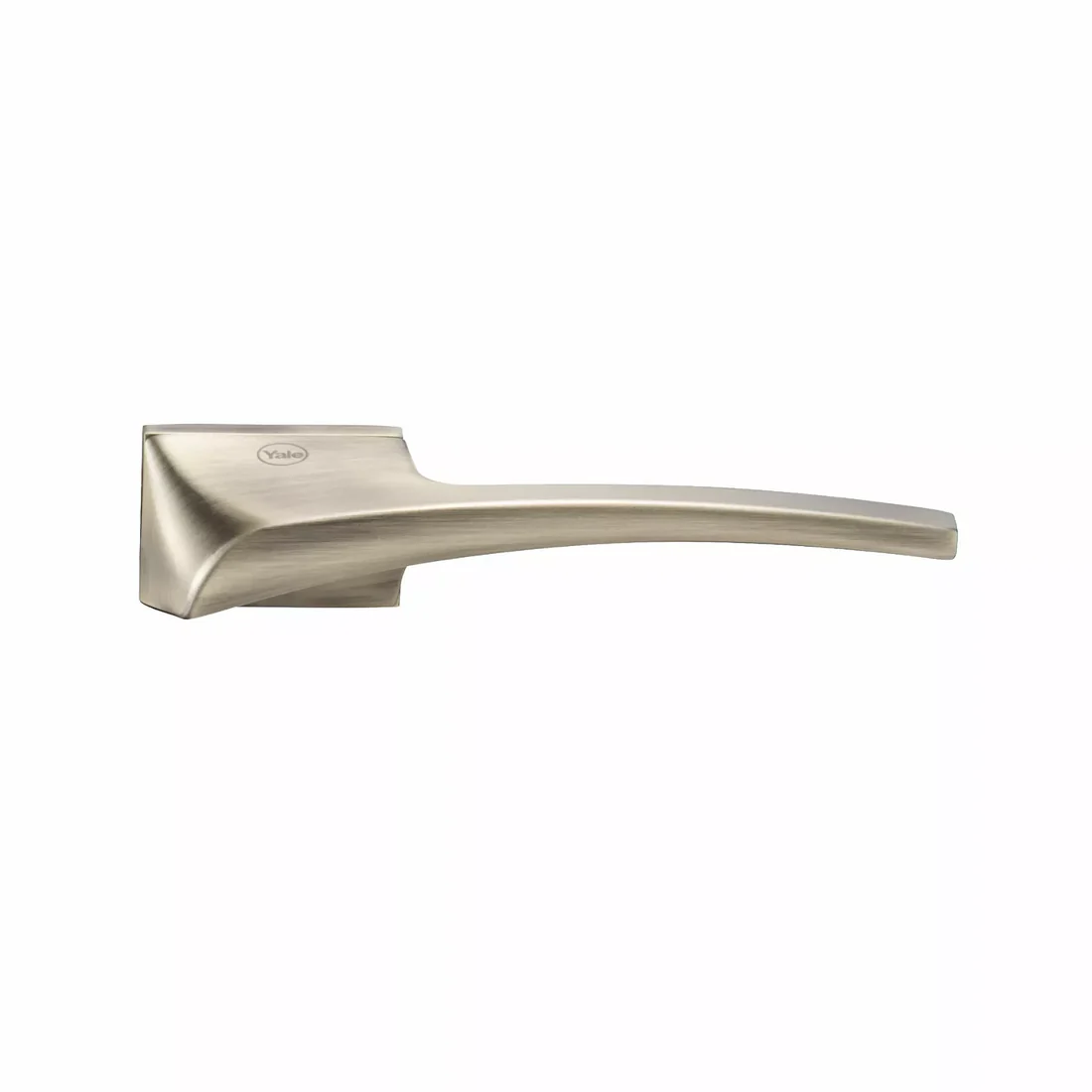

Lever Handle:

  • Material: Zinc Alloy
  • Spindle 8x8mm
  • Lever Handle with Rose and Escutcheons

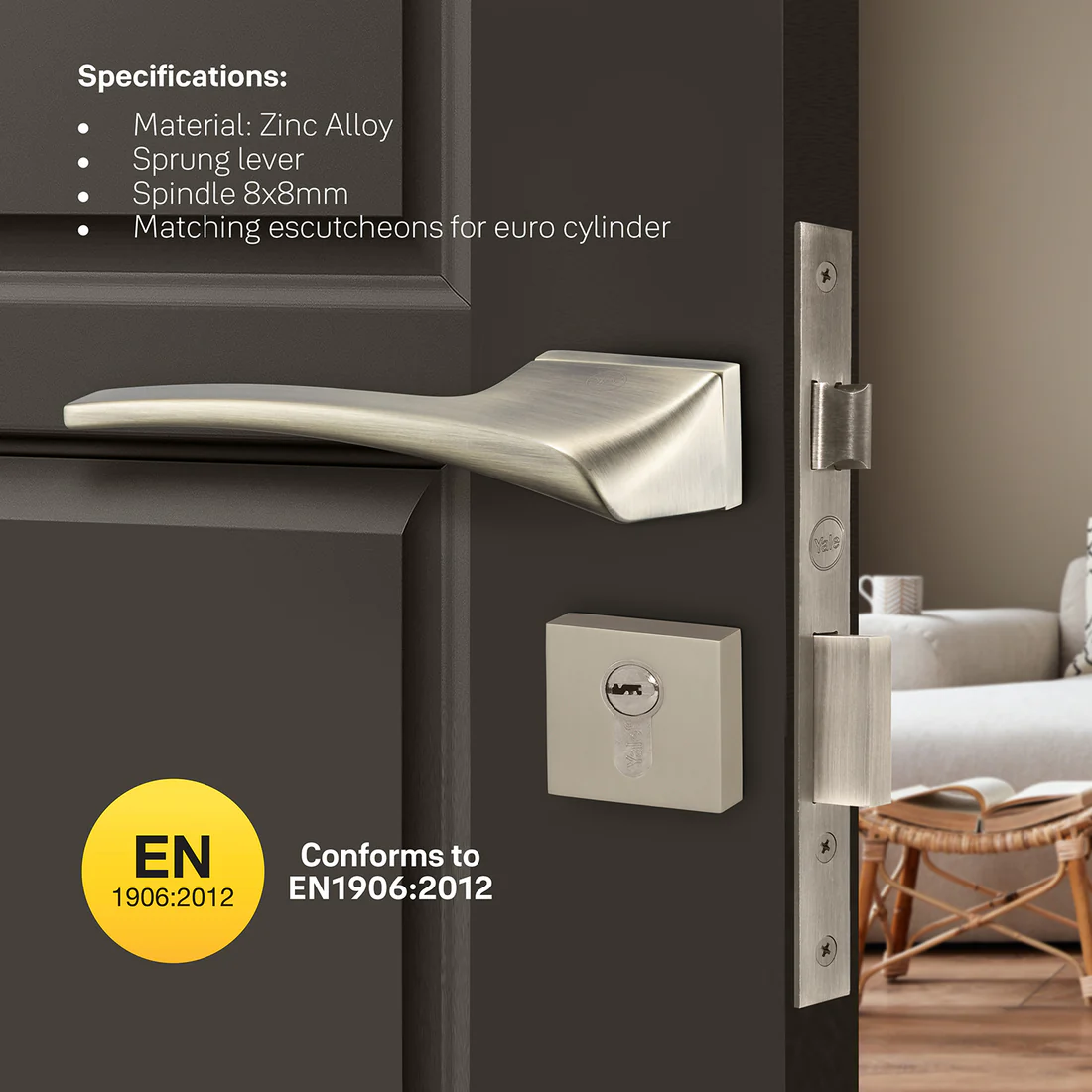

  • Conforms to EN1906:2012

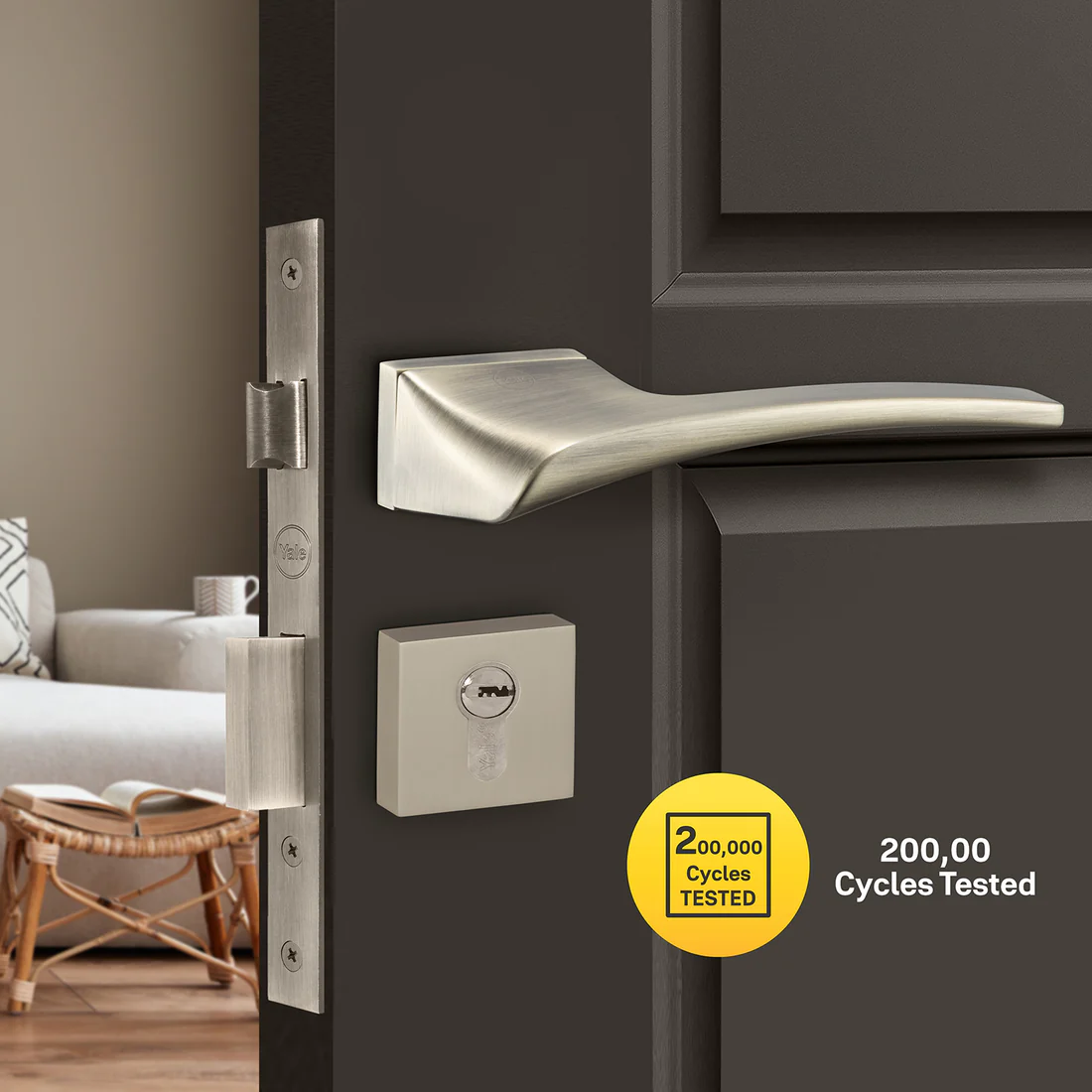

  • Tested to 200,000 cycles
  • Finish options – Satin Steel Finish

Mortise Lock:

  • Backset – 45mm
  • Centre Distance – 85mm
  • 50,000 Cycles tested
  • Double Turn Deadbolt
  • Reversible latch

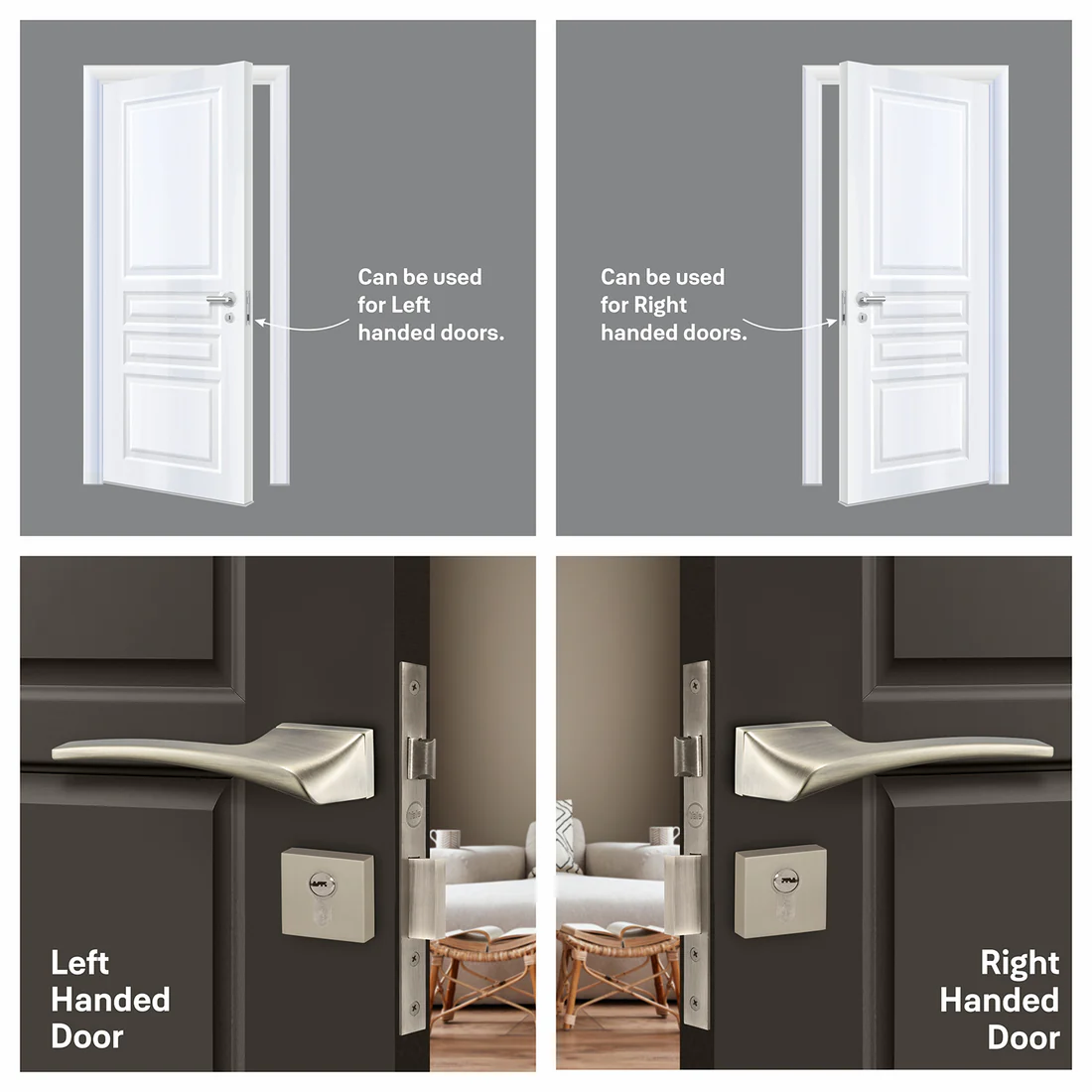

  • Suitable for Left or right side doors
  • Latch and Deadbolt – Zinc Alloy
  • Mild Steel Plates
  • With Strike plate and screws

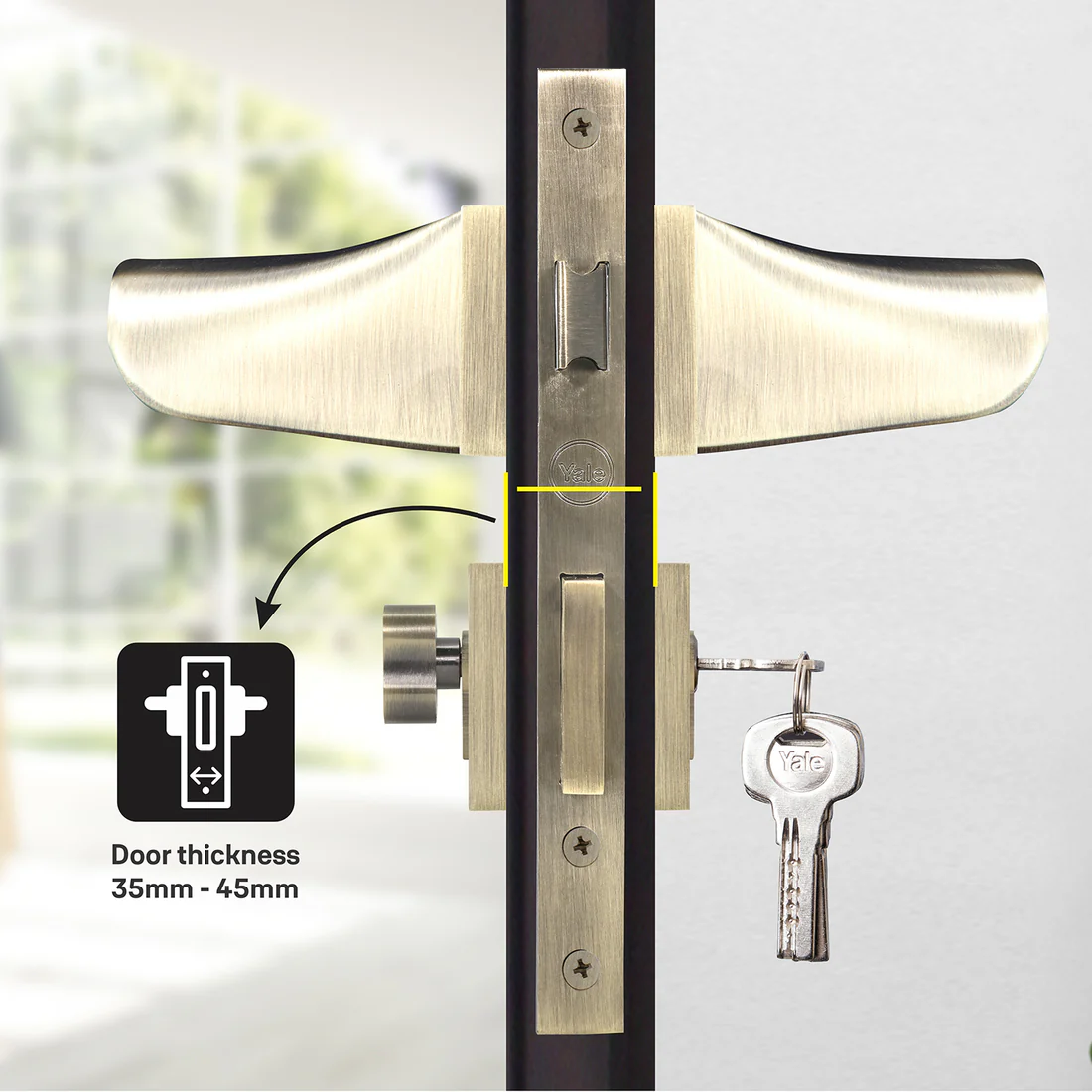

Cylinder:

  • Euro Profile Cylinder
  • Length – 60mm
  • Knob Inside and Keys outside
  • Regular Brass Keys – 3Nos.
  • Material – Zinc Alloy

Mortise Combosets of Lever Handle, with euro profile cylinder 60mm with both side keys. Regular keys option and lockbody.

Lever Handle:

  • Material: Zinc Alloy
  • Spindle 8x8mm
  • Lever Handle with Rose and Escutcheons
  • Conforms to EN1906:2012
  • Tested to 200,000 cycles
  • Finish options – Satin Steel Finish

Mortise Lock:

  • Backset – 45mm
  • Centre Distance – 85mm
  • 50,000 Cycles tested
  • Double Turn Deadbolt
  • Reversible latch
  • Suitable for Left or right side doors
  • Latch and Deadbolt – Zinc Alloy
  • Mild Steel Plates
  • With Strike plate and screws

Cylinder:

  • Euro Profile Cylinder
  • Length – 60mm
  • Knob Inside and Keys outside
  • Regular Brass Keys – 3Nos.
  • Material – Zinc Alloy
