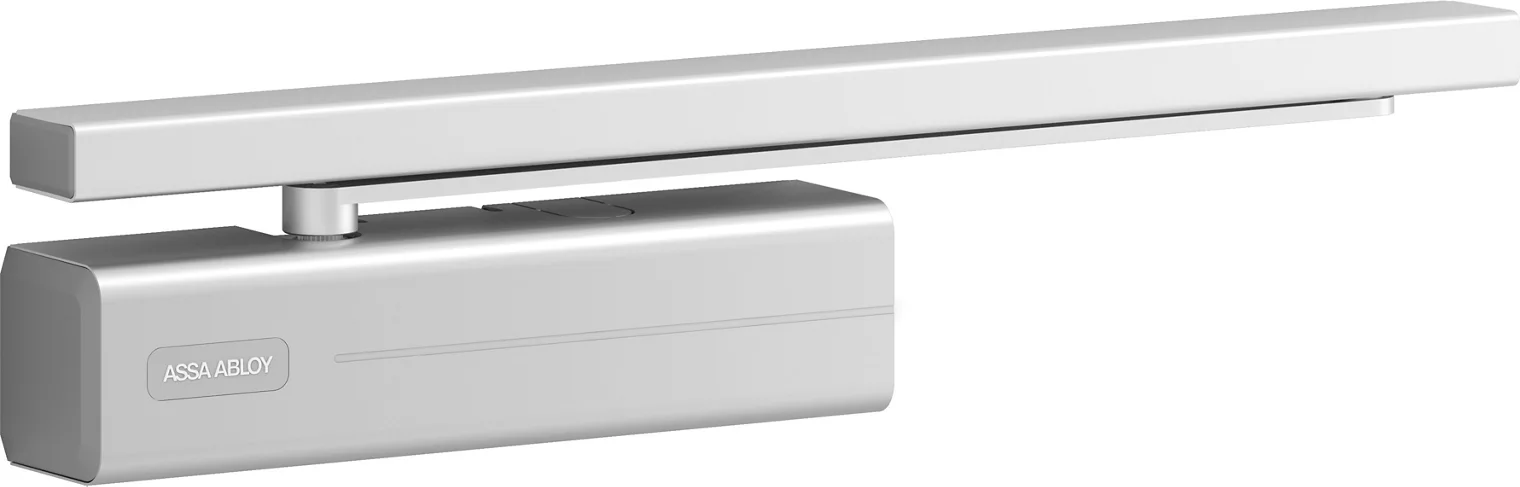

DC700 Door Closer – G193

For single-leaf doors up to size EN 6 (1400 mm), optionally with closing delay or 180° opening angle

Product description

• Door closer with Cam-Motion^® technology and height adjustable guide rail G195 or standard guide rail G193
• Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
• Meets the requirements of DIN SPEC 1104 / CEN15894
• Certified in compliance with EN 1154, size 3-6
• Suitable for fire and smoke protection doors
• For single action doors up to 1400 mm wide
• Can be used in four installation types: hinge and non-hinge sides in standard and frame installation

Overview of Advantages

• Can be used with concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right-handed doors
• Axis continuously height adjustable up to 14 mm
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Opening angle up to 160°
• Effective backcheck and latching speed range adjustable
• Large range of applications
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to
• RAL9005, stainless steel-design
• Customised finishes available on request

Characteristics of special model DC700DA

• Can be used with concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right-handed doors
• Axis continuously height adjustable up to 14 mm
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Opening angle up to 160°
• Effective backcheck and latching speed range adjustable
• Large range of applications
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel-design
• Customised finishes available on request

Characteristics of special model DC700AC

• Opening angle of 180° for standard installation on hinge side
• Other features as in model DC700

Characteristics for guide rail G195

• Height adjustable by 2 mm for tolerance
• Concealed fastening screws
• Installation dimensions: see diagram

Characteristics of standard guide rail G193

• Without protective cover
• Visible fastening screws
• Installation dimensions: see diagram (dimensions in brackets)
