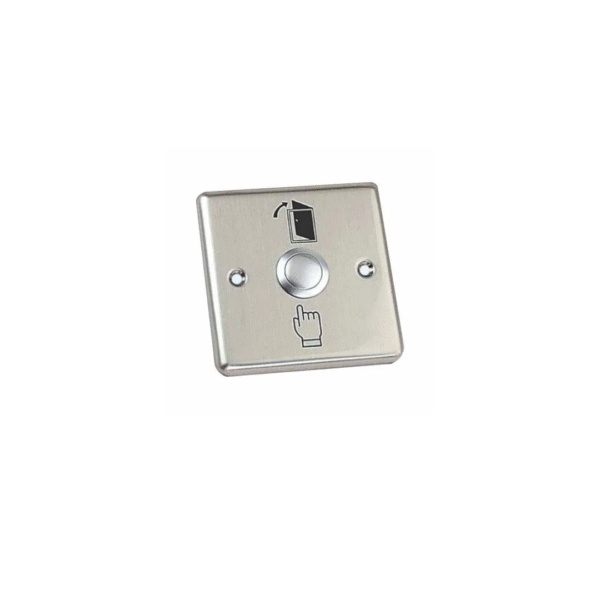

Exit Switch

Exit Switch – Reliable Door Release for Access Control Systems
A must-have component in any secure access system, the exit switch provides users with a safe and simple way to exit secured zones. Compatible with magnetic locks, electric strikes, and door controllers, this switch is available in a range of styles including touch, push button, and infrared sensor versions.

Specifications:

• Operation: Momentary contact (NO/NC)

• Voltage: 12V/24V DC

• Material: Stainless steel / ABS

• Mounting: Surface or flush

• Models Available: Push button / Touch / IR no-touch

• Applications: Offices, server rooms, labs, residential gates

  Key Features
  • Size: 86L * 86W*31H mm
  • Material : Stainless Steel Panel with Steel Button
  • Tested for 0.1 Million cycles of operation
  • Output : No. NC and COM
  • Operating Humidity of 0-95%
  • Current rating : 3A@36VDC
